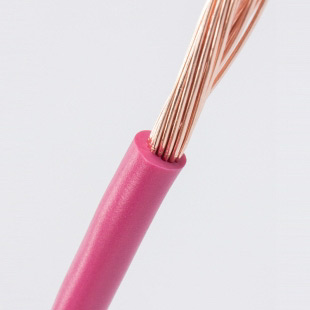

BVR fixed wiring flexible wire (ZR-BVR)

BVR fixed wiring flexible wire (ZR-BVR)

Features: Scope of application: Applicable to AC rated voltage of 450/750V and below, it is required to have fixed installation of electrician, instrument, telecommunication equipment, power device and lighting line with flame retardant occasion. Product Features: The long-term allowable operating temperature of all types of cables should not exceed 70 °C.
Product Details

Scope of application:



Applicable to AC rated voltage of 450/750V and below, it is required to have fixed installation of electrician, instrument, telecommunication equipment, power device and lighting line for flame retardant occasions.



Features:



The long-term allowable operating temperature of all types of cables should not exceed 70 °C. The laying temperature of the cable shall not be lower than 0 °C, the allowable bending radius of the cable with an outer diameter (D) of less than 25 mm shall be not less than 4D, and the allowable bending radius of the cable with an outer diameter (D) of 25 mm or more shall not be less than 6D.



Implementation standards:

JB8734-2012

Brand:

Zhujiang Wires & Cables

Model number:

BVR

Conductor material:

Copper oxide free core (copper content: 99.9%)

Number of cores:

Single core

Insulation Materials:

PVC

Specifications:

0.75~185mm²

Rated voltage:

450/750V

colour:

Red yellow yellow green bicolor blue green black



Structure diagram >>






The insulation material and sheath material of BVR wire are all polyvinyl chloride. According to the different performance, the product can be divided into three categories: insulation, flame retardant and fireproof. Different classification uses are different.



model

name

Number of cores

Nominal cross section mm2

use

BVR

Copper core PVC insulated flexible wire





Power, electrical instrumentation and automation

ZR-BVR

Flame retardant copper core PVC insulated flexible wire





It is used for the fixed laying of electricians, instruments, telecommunication equipment, power equipment and lighting lines in flame retardant applications.

NH-BVR

Refractory copper core PVC insulated flexible wire





Control, monitoring circuit, power, line protection and other occasions and large-scale construction, petroleum, metallurgy, chemical, cable, ship, personnel intensive industries with high flame retardant and fire-resistant requirements
