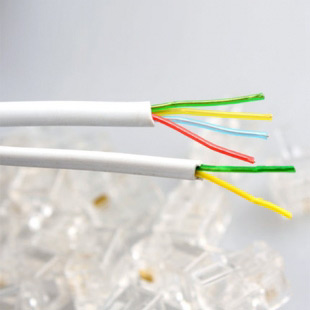

HYV telephone line
Scope of application:
For indoor telephone lines, doorbell intercom systems, data transmission, etc.
Features:
The cable core is composed of a plurality of mutually insulated wires or conductors, and the outer communication line has a sealed sheath. Some are also equipped with an outer sheath on the outside of the sheath. There are various laying methods such as overhead, direct burial, pipeline and underwater. It has the advantages of large communication capacity, high transmission stability, good confidentiality, and less influence by natural conditions and external interference.
|
Brand: |
Zhujiang Wires & Cables |
|
Model number: |
HYV |
|
Conductor material: |
Cu/CCA/CCS/CCA +CCS/CCA |
|
Conductor diameter: |
0.35mm~0.58mm, ±0.01mm error |
|
Cover: |
PVC / low smoke and halogen free |
|
Sheath diameter: |
Determined by conductor diameter and number of cores |
|
Insulation material: |
Polyethylene, high density polyethylene |
|
Insulator diameter: |
0.88mm~0.98mm, ±0.01mm error according to conductor |
|
Specifications: |
2×0.5 4×0.5 6×0.5 |
|
colour: |
Gray white green blue orange or brown |
|
Remarks: |
Production of flat and round, indoor and outdoor telephone cables |
Structure Representation >>
|
Copper conductor --------------------------------------------------------- High purity oxygen free copper has good electrical conductivity, high efficient power transmission and electrical signals, and low loss. |
 |
 |
HDPE --------------------------------------------------------- High density polyethylene non-toxic, tasteless, odorless, and more environmentally friendly. And it has good heat resistance and cold resistance, indicating a higher hardness, tensile strength, stiffness and other mechanical strength, insulation properties and more stable. |
|
PVC / LSZH sheath --------------------------------------------------------- Environmental protection PVC sheathed, acid and alkali resistance, abrasion resistance, oil resistance, oxidation resistance (not easy to aging), more durable. |
 |
|
model |
name |
use |
|
HYV |
Copper core polyolefin insulated PVC sheathed local communication cable |
Communication work letter wiring, telephone system branch connection wiring, suitable for home decoration, factory decoration and office building telephone communication cable system wiring connection, voice communication system between the main line, program-controlled switch, telephone, fax and digital phone. |
There are many environments and occasions where communication cables can be used. Different models have different environments. The details can be seen in the following table –
|
name |
HYA |
HYATC |
HYAT |
HYAT23 |
HYAC |
HYV |
DWZHYV |
|
Suitable for the application environment |
Outdoor temperature and cold resistance |
Overhead and waterproof |
Waterproof and tube |
Direct burial and rodent control |
Overhead |
Indoor flame retardant |
Flame retardant, low smoke, non-toxic |
|
Conditions of Use |
Working temperature is generally -30~60°C |
-5~50℃ |
|||||
The communication cable model consists of two parts: the formal code and the specification code. The cable form code is as specified in the following table. The specification code is: cable nominal pair number of lines × 2 × line nominal diameter.
|
classification |
conductor |
insulation |
jacket |
feature |
|||||
|
Code number |
meaning |
Code number |
meaning |
Code number |
meaning |
Code number |
meaning |
Code number |
meaning |
|
H |
Communication Cable |
Omitted |
copper |
Y |
Solid polyolefin |
A |
Aluminum-plastic composite sheath |
T |
Filled |
|
V |
PVC sheath |
C |
Self-supporting |
||||||
